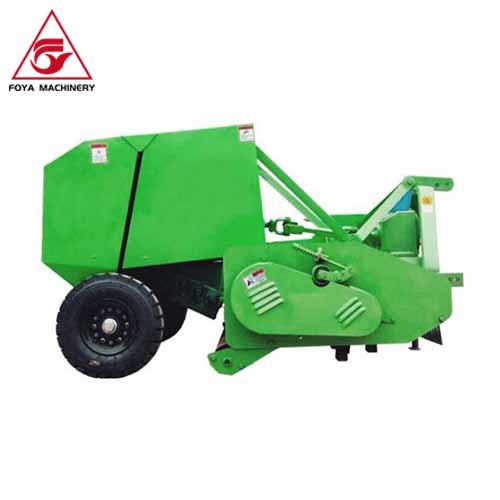

Straw Crushing Baler
The straw crushing baler is a fully automatic small and medium-sized feed and animal husbandry machinery. Its is small in size and light in weight, and can be fed, cut, conveyed, and baled the straw by one person.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you
The straw crushing baler is suitable for harvesting, crushing and baling of various dry and fresh crop straws such as corn, wheat, rice, cotton straw and pasture. It can be used independently or with a combined harvester. It has the characteristics of small size, light weight, compact structure, convenient operation and high work efficiency. The length and size of the bales can be adjusted according to the needs of transportation and storage during use.
1. Fully automatic design, only one person can realize whole plant feeding, cutting, conveying, etc.;
2. The structure is simple and reasonable, sturdy and durable, safe and reliable, easy to use and maintain, high bundling efficiency, high density, etc.
3. Enlarge tires, wear-resistant and anti-strike, adapt to various terrains.
4. Using manganese steel blades, strong and durable, good crushing effect.
5. Comes with hydraulic cylinder, no need to connect tractor cylinder.
| Model | SHF130 | SHF165 | SHF180 | SHF200 |
| Harvesting Width (mm) | 1300 | 1650 | 1800 | 2000 |
| Power (hp) | >40 | >50 | 70 | 90 |
| Packing Size (cm) | 210*180*150 | 240*200*150 | 250*230*150 | 260*260*150 |
| Weight (kg) | 900 | 1100 | 1300 | 1500 |
| Efficiency (hm2/h) | 2-2.8 | 2.5-3.5 | 2.3-5 | 3-6 |
| Straw Size (cm) | 2-10 | 2-10 | 2-10 | 2-10 |
| Stubble Height (cm) | 5-15 | 5-15 | 5-15 | 5-15 |

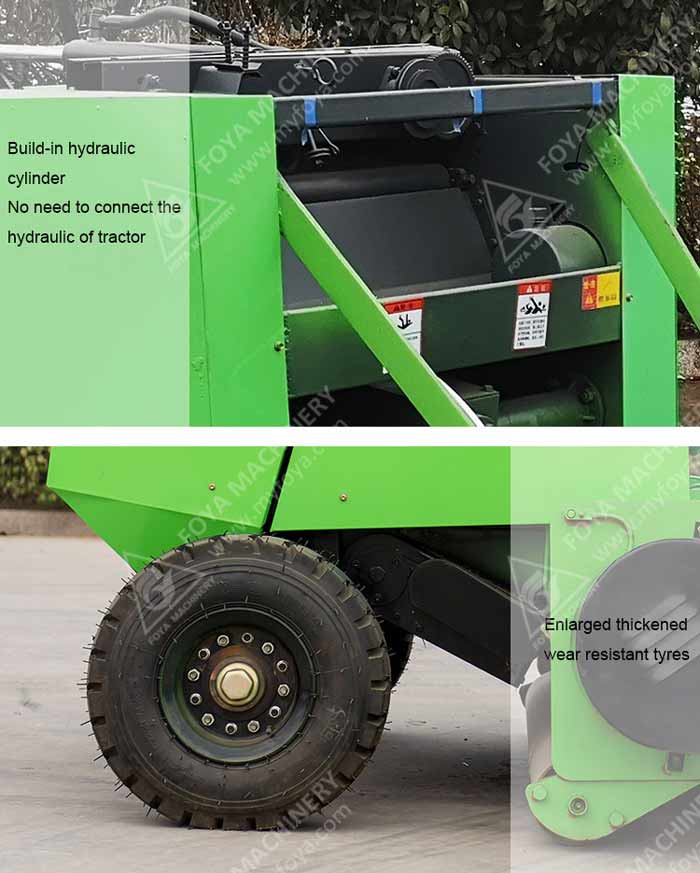

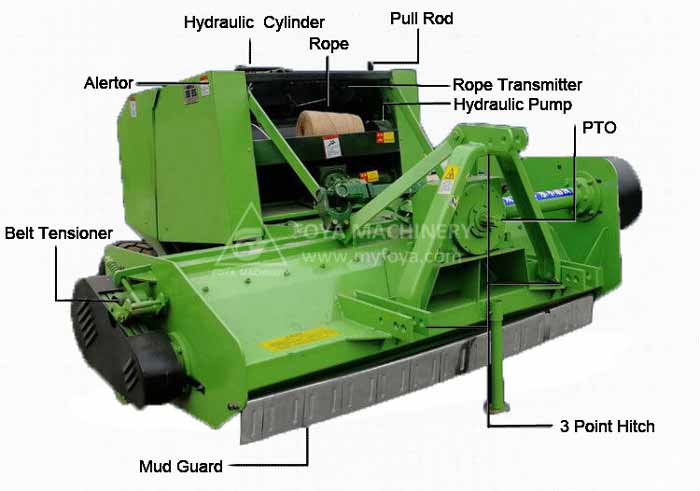

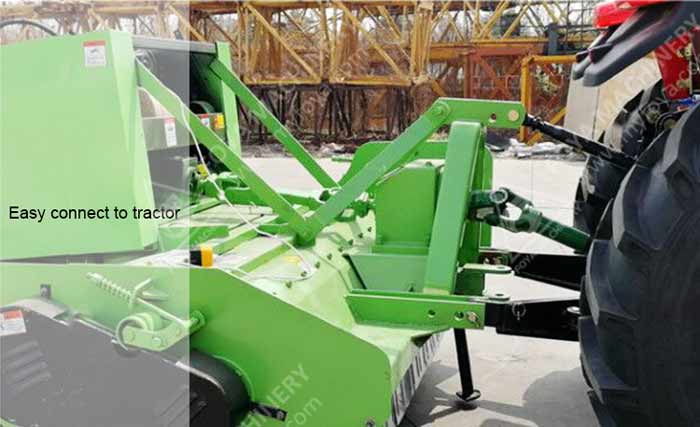

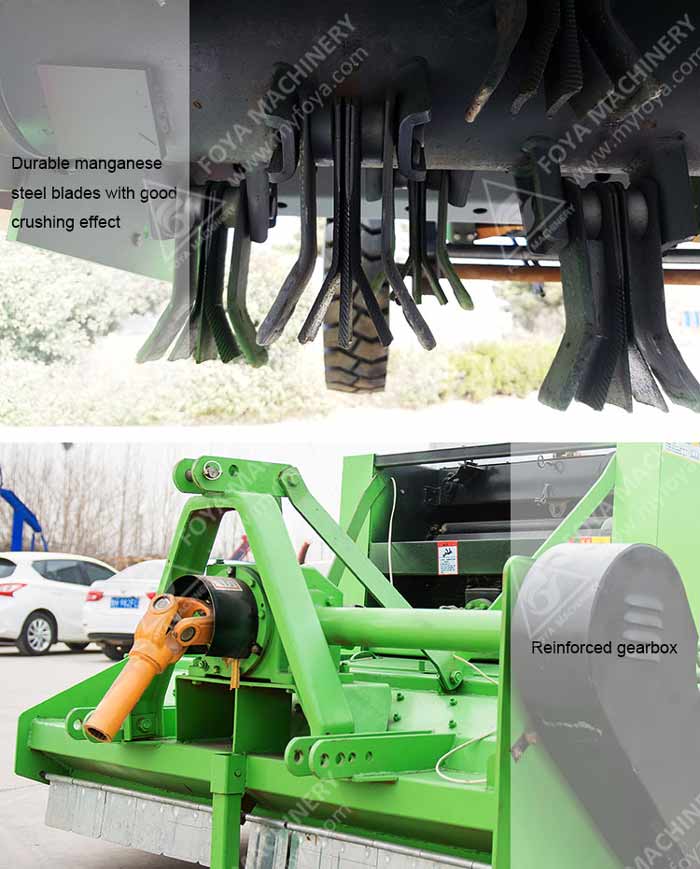

Detailed Pictures

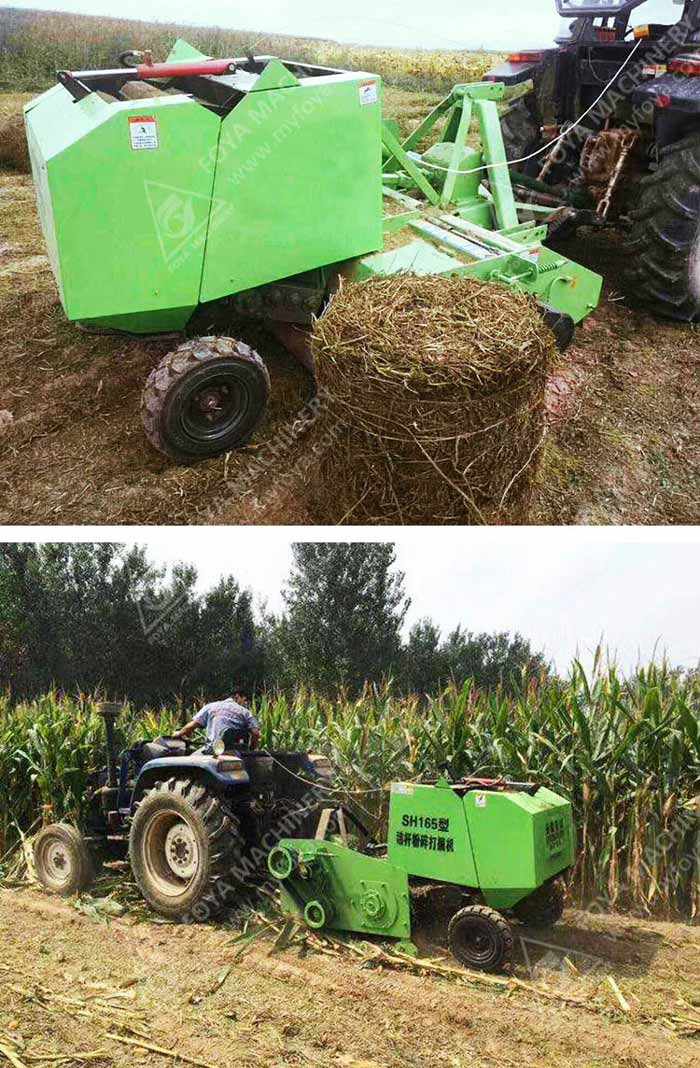

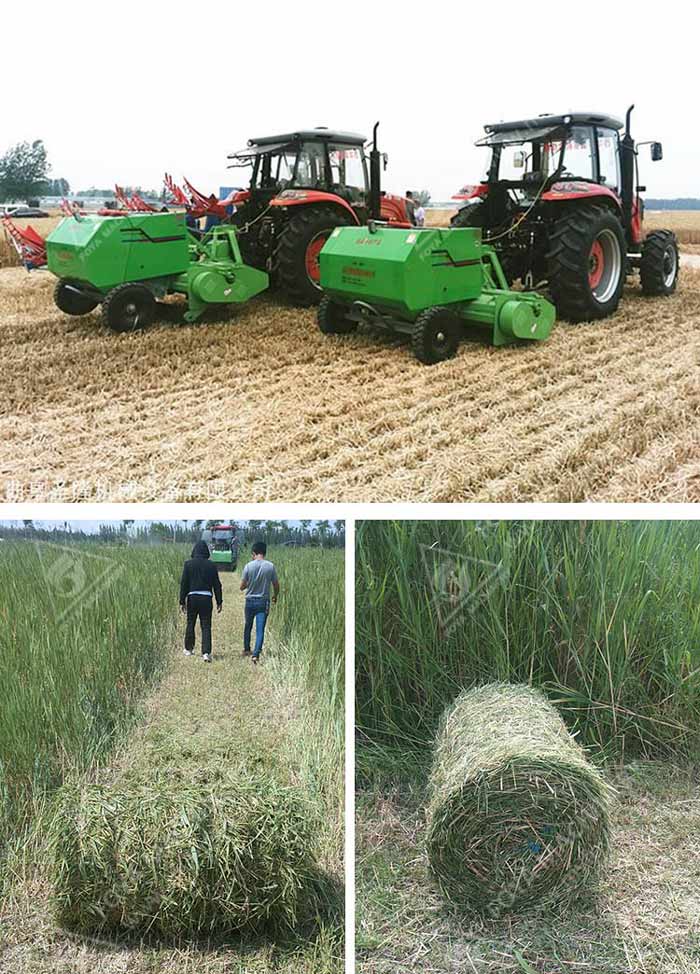

Working Sites
Contact us to get more videos.
