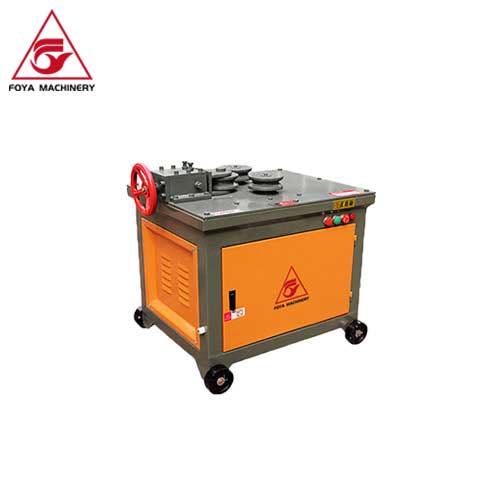

Steel Bar Benders
Steel bar bender is mainly used for processing steel bars used in large construction projects such as bridges, tunnels, culverts, hydropower stations, and subway projects. Angle iron, flat iron, round pipe, channel steel, square steel, etc. can be processed after changing the rollers.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you
Steel bar bender is mainly used for processing steel bars used in large construction projects such as bridges, tunnels, culverts, hydropower stations, and subway projects. Angle iron, flat iron, round pipe, channel steel, square steel, etc. can be processed after changing the rollers. This machine is easy to operate, easy to maintain, efficient, accurate in arc, and shaped in one time. The use of prestress-relief bending solves the break caused by the inherent tension after welding, which greatly improves the production efficiency.
1. It can work clockwise and counterclockwise. After replacing the driving wheel, it can bend flat steel, square steel, square tube and rectangular tube.
2. The machine is easy to operate, easy to use, efficient and accurate in arc.
3. The working wheels of steel bar bender are made of high-rigidity material, which is strong and durable.
4. The thickened the table surface, durable and not deformed.
| Model | GWH-24 | GWH-32 | GWH-40 | GWH-45 | GWH-50 |
| Diameter (deformed steel bars mm) | 12-24 | 25-32 | 32-40 | 40-45 | 45-50 |
| Bending radius (mm) | ≥100 | ≥150 | ≥300 | ≥400 | ≥500 |
| Bending speed (m/min) | 20 | 20 | 20 | 20 | 20 |
| Power(kw) | 3 | 4 | 4 | 4 | 5.5 |
| Rotate speed(r/min) | 1440 | 1440 | 1440 | 1440 | 1440 |
| Dimension (cm) | 66*60*70 | 66*75*80 | 118*100*88 | 118*100*88 | 118*100*88 |
| Weight(kg) | 360 | 430 | 600 | 630 | 680 |

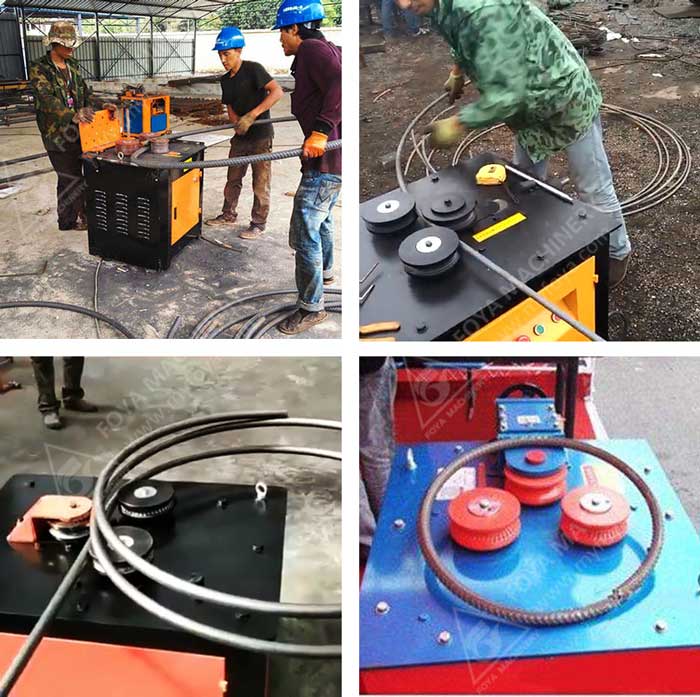

Working Site
