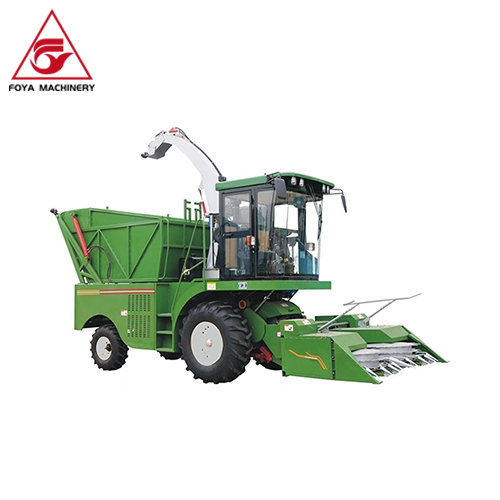

Self-propelled Silage Harvester
The self-propelled silage harvester is powerful, easy to operate, comfortable, low fuel consumption,labor saving, high efficiency and reliable to use.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you
The self-propelled silage harvester can crush corn, cotton and other straw crops at one time and use it as silage for green fodder, which greatly reduces the loss of nutrients and greatly improves the utilization rate of feed. It is simple to operate and easy to use, so the application range is very wide.
1. The multi-disc header has uniform feeding, strong ability to harvest high-stalk crops, realizes misaligned operations, reduce the height of stubble, and has high harvesting efficiency;
2. The feed length can be adjusted fast and conveniently;
3. Equipped with a large straw basket, which is more convenient;
4. Hydraulic lifting and rotation, making it more convenient for one person to operate the straw basket and collect feed with the vehicle;
5. Wide track, short wheelbase, flexible and convenient turning;
| Model | 4QZ-2400 | |
| Dimension（mm） | 6350X2400X3350（LXWXH） | |
| Working width（mm） | 2400 | |
| Weight（Kg） | 4180 | |
| Engine | Model | YCD4P32T-140 |
| Power（Kw） | 103 | |
| Rotate speed（r/min） | 2300 | |
| Minimum turning radius | Left（mm） | 6500 |
| Right（mm） | 6350 | |
| Track width | Driven wheel（mm） | 1490 |
| Driving wheel（mm） | 1700 | |
| Tyre | Driven wheel | 10/75-15.3 |
| Driving wheel | 15-24 | |
| Wheel base（mm） | 2750 | |
| Minimum ground clearance（mm） | 315 | |
| Cab | Ordinary | |
| Minimum stubble height（mm） | ≤6 | |
| Header lifting range（mm） | 0-700 | |
| Working speed(Km/h) | 1.6-6 | |
| Efficiency (hm2/h) | ≥0.5 | |
| Cutting part | Type | Blades |
| Rotor diameter（mm） | 600mm | |
| Rotate speed（r/min） | 1600 | |
| Throwing height（m） | 4.6 | |
| Throwing distance（m） | 9 | |
| Auger rotation angle | 360⁰ | |
