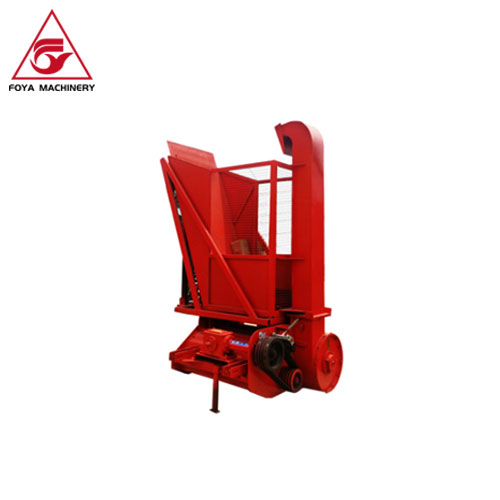

Silage Harvester

The silage harvester can complete the harvesting, chopping and loading of straw and forage grass at one time. The machine is equipped with a hydraulic self-unloading device, and a secondary crushing device and supporting wheels can be added as required.

Counseling hotline: 0086 - 13027503590

Recommend similar products for you

  • Silage Baler
  • Silage Bagging Machine
  • Straw Crushing Baler
  • Round baler
  • Self-propelled Silage Harvester
  • Chaff Cutter
  • Feed Pellet Machine
  • Milking Machine
  • TMR Feed Mixer
  • Feed Hammer Mill
  • Silage Harvester
Overview

The silage harvester is a kind of fully automatic and mounted type silage harvesting machine. The machine is powered by a tractor, and only one person can perform feeding, crushing, conveying and unloading operations. This machine is suitable for all kinds of dry and wet straw, corn straw and various pastures like alfalfa, Napier, elephant grass. The crushed straw forage can be used directly in the farm, feed plant or for making pellet feed.

Features

1. The silage harvester integrates harvesting, cutting, crushing and collecting, and one person can complete the operation of the machine.

2. The machine is easy to maintain and with low costs, and it is the ideal matching equipment for farmers and farms.

3. Stubble height can be adjusted according to crop planting requirements.

4. It can be equipped with a secondary crushing device to make the crushed straw reach 1-3 cm.

5. It can equip support wheels, which will not affect the forage harvesting of next season.

6. The thickened steel plate makes our machine more durable than other machines on the market.

Parameter

Model4YQH-1004YQH-1304YQH-1504YQH-1654YQH-180
Harvesting width1m1.3m1.5m1.65m1.8m
Power35-50HP50HP60HP75HP90HP
Capacity (acres/h)≥3≥4≥5≥6≥7
Stubble height(mm)100-150100-150100-150100-150100-150
Recovery rate≥89%≥89%≥85%≥85%≥85%
Throwing horizontal distance≥3m≥3m≥3m≥3m≥3
Stalk chopping length3-8cm3-8cm3-8cm3-8cm3-8cm
Height of remaining stalk≥400mm≥400mm≥400mm≥400mm≥520mm
Blades quantity30pcs30pcs40pcs46pcs48pcs
Main shaft speed2160r /min2160r/min2160r/min2160r /min2160r/min
Weight400kg450kg550kg680kg700kg
Dimension (cm)125*135* 315125*165* 315125*190* 315125*200* 315125*215* 315

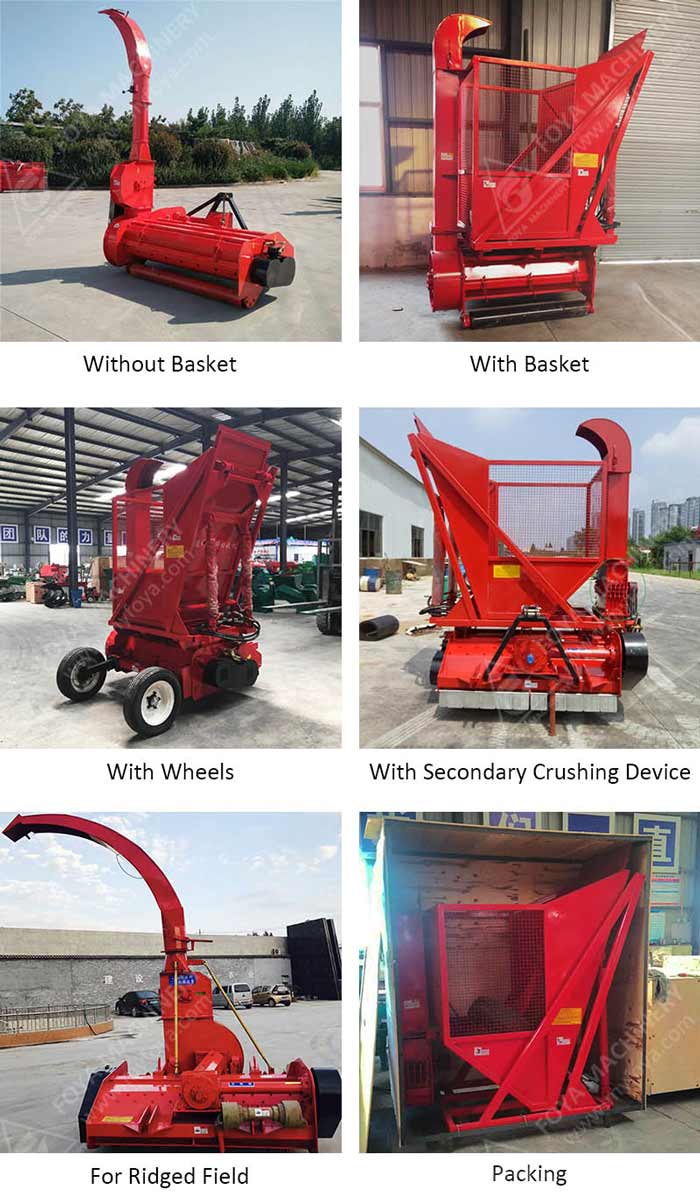

Detailed Pictures

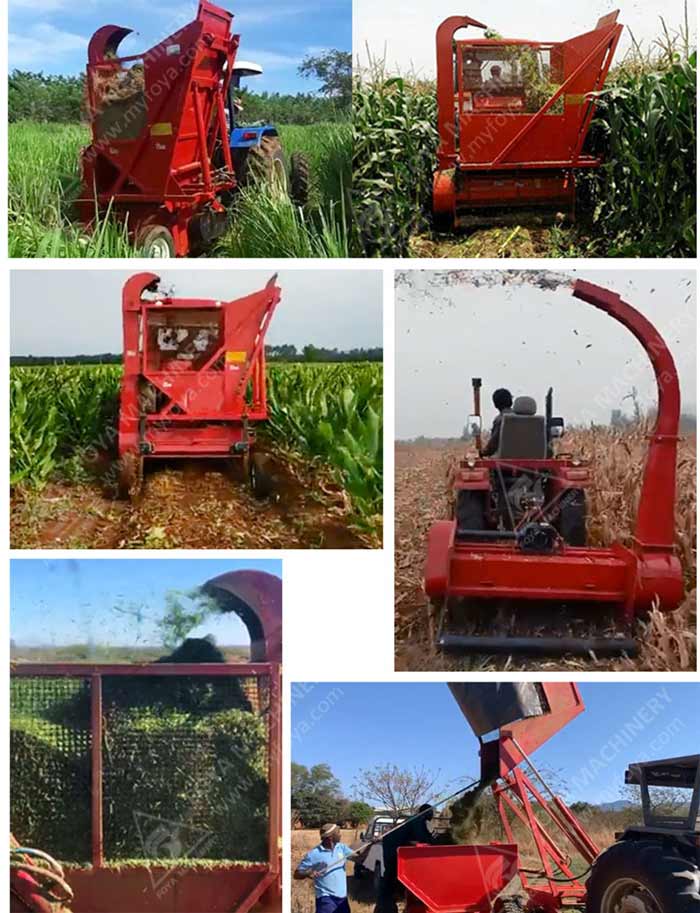

  Working Site
