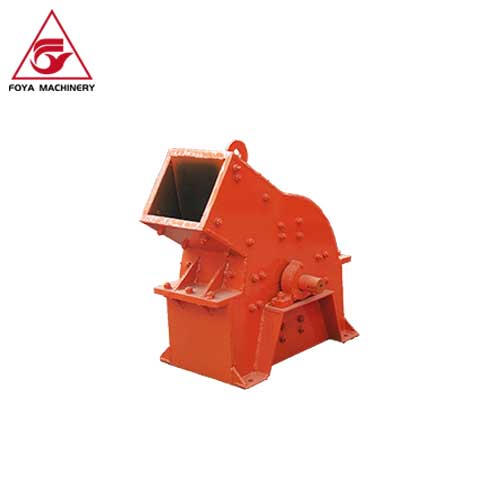

Hammer Crusher
Hammer crusher is suitable for crushing limestone, coal, salt, gypsum, brick, etc. It can be widely used in industries such as construction, cement, coal, chemical, metallurgy and fertilizer.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you
Hammer crusher can be used to crush various medium hardness and brittle materials, and has the advantages of wide application range, simple structure, large crushing ratio and high production efficiency. The mini models can be equipped with a motor or diesel engine, and customers can choose the appropriate power according to the situation. At present, the machine has been exported to Africa, America and Southeast Asia.
1. Small jaw crushers can be equipped with motor or diesel engine.
2. The hammer of the hammer crusher adopts high-quality high manganese steel and undergoes a strict heat treatment process, which is more wear-resistant and more efficient.
3. Compact structure, large crushing ratio, uniform particle size.
4. Energy-saving, low noise and less dust.
| Model | Max. feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (t) | Dimension (L×W×H) (mm) |
| PC400*300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900*670*860 |
| PC600*400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200*1050 *1200 |
| PC800 *600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310*1180*1310 |
| PC1000*800 | ≤350 | ≤35 | 25-50 | 75 | 5.9 | 1600*1390*1575 |
| PC1000*1000 | ≤350 | ≤35 | 30-55 | 90 | 8 | 1800*1590*1775 |
| PC1200*1200 | ≤350 | ≤35 | 50-80 | 132-160 | 19.2 | 2060*1600*1890 |
| PC1400*1400 | ≤350 | ≤35 | 50-100 | 280 | 32 | 2365*1870*2220 |

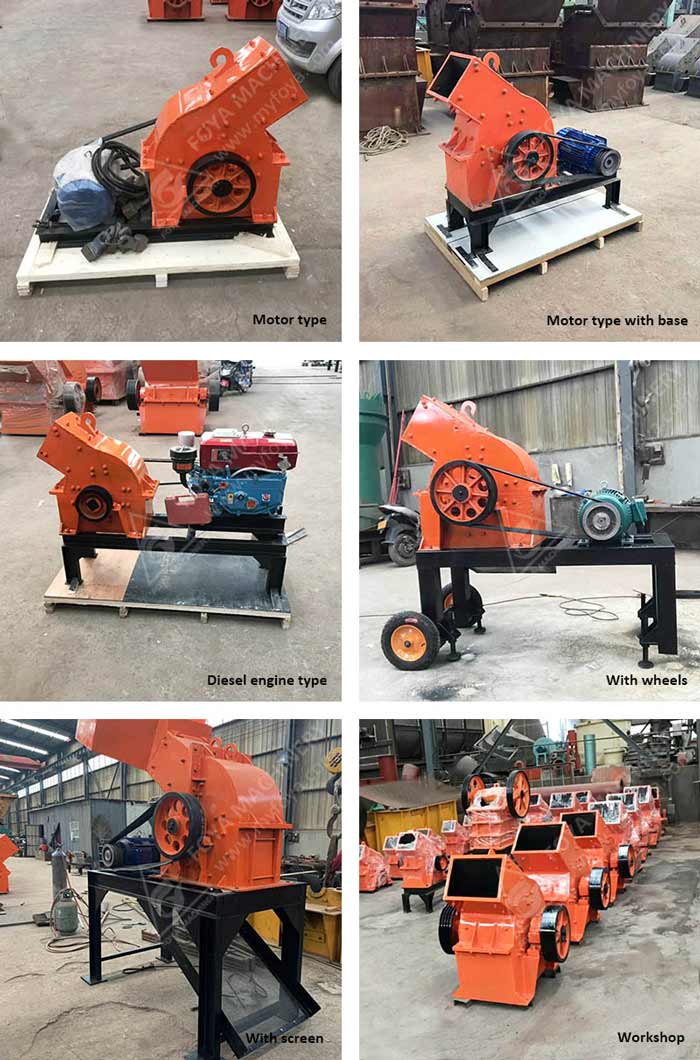

Pictures

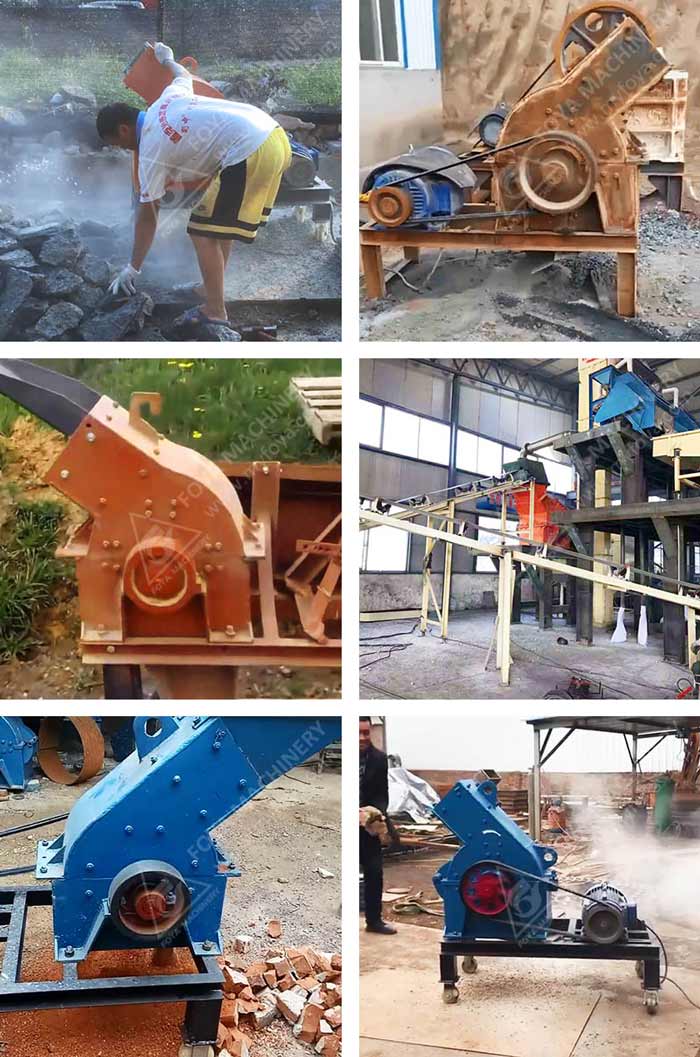

Working Site
