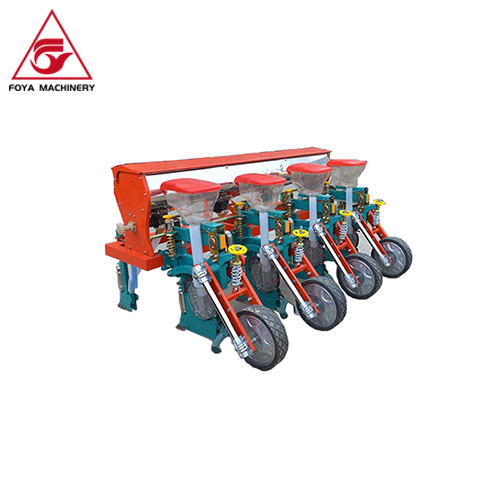

Corn Planter

This corn planter is matched with a wheeled tractor with more than 20 horsepower. It can complete multiple processes such as ditching, fertilization, seeding, earthing, compacting, etc. The planter is suitable for different crops such as corn and soybeans. We have 2-8 rows planter for optional, and the row spacing can be customized according to the local planting pattern. At present the planters have been exported to Africa, America and Southeast Asia.

Counseling hotline: 0086 - 13027503590

Recommend similar products for you

  • Pasture Seeder
  • Manual Rice Transplanter
  • Garlic Planter
  • Vegetable Transplanter
  • Corn Planter
Overview

This corn planter is matched with a wheeled tractor with more than 20 horsepower. It can complete multiple processes such as ditching, fertilization, seeding, earthing, compacting, etc. The planter is suitable for different crops such as corn and soybeans. We have 2-8 rows planter for optional, and the row spacing can be customized according to the local planting pattern. At present the planters have been exported to Africa, America and Southeast Asia.

Features

1. Row spacing, plant distance and sowing depth are adjustable.

2. No-till sowing. It can plant directly on unploughed or stubble fields.

3. The floating design ensures the machine to maintain a fixed sowing depth on uneven field.

4. The corn planters adopts superior bearings, seed-metering device and other main components, which makes the machine more durable.

5. Simple structure and more convenient to operate and maintain.

Parameter

Model2BYSF-22BYSF-32BYSF-42BYSF-5   2BYSF-6   2BYSF-8
Planting
Rows
234568
Sowing
Width
(mm)
465-620920-12501375-18501825-24502725-30503175-4250
Basic
Row
Spacing
(mm)
450-600 450-600 450-600 450-600 450-600 450-600
Sowing
Depth
(mm)
30-7030-7030-7030-7030-7030-70
Planting
Distance
(mm)
180-350180-350180-350180-350180-350180-350
Matched
Power
(hp)
15-3015-3030-5050-8050-10050-120
Efficiency
(hm²/h)
0.2-0.270.3-0.40.4-0.530.5-0.670.6-0.80.8-1.06
Dimension
(cm)
130*125*
100
170*170*
120
170*220*
120
170*280*
120
170*340*
120
170*460*
120
