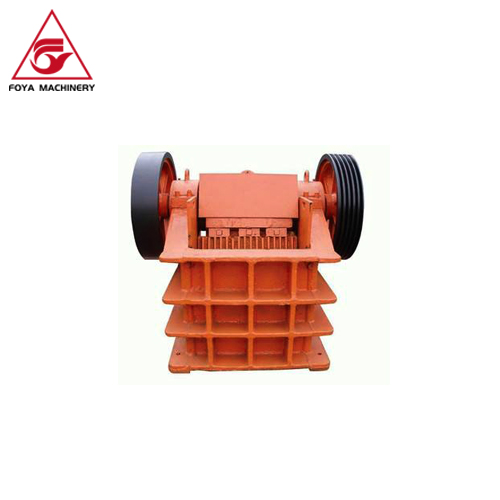

Jaw Crusher
Jaw crusher is mainly used for crushing bulk materials, widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industries.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you
Jaw crusher has various models, and can be used for coarse and fine crushing of stone. It has the advantages of wide application range, simple structure, large crushing ratio, easy maintenance, and low operating cost. The mini models can be equipped with a motor or diesel engine, and customers can choose the appropriate power according to the situation. At present, the machine has been exported to Africa, America and Southeast Asia.
1. Small jaw crushers can be equipped with motor or diesel engine.
2. Simple structure, convenient operation, widely used.
3. High crushing ratio, large capacity, evenly product size.
4. Energy-saving, low noise and less dust.
| Model | Max. feeding size(mm) | Discharge size(mm) | Capacity (t/h) | Power (kw) | Weight (t) | (L*W*H) (mm) |
| PE-150*250 | 125 | 10-40 | 1-3 | 5.5 | 0.8 | 720*660*850 |
| PE-200*300 | 180 | 15-50 | 2-6 | 7.5 | 1.2 | 910*750*990 |
| PE-200*350 | 180 | 18-70 | 3-10 | 11 | 1.5 | 1000*870*990 |
| PE-250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1300*1090*1270 |
| PE-400*600 | 340 | 40-100 | 16-60 | 30 | 7 | 1730*1730*1630 |
| PE-500*750 | 425 | 50-100 | 40-110 | 55 | 12 | 1980*2080*1870 |
| PE-600*750 | 500 | 150-200 | 80-240 | 55 | 15.8 | 2070*2000*1920 |
| PE-600*900 | 500 | 65-160 | 50-180 | 55 | 17 | 2190*2206*2300 |

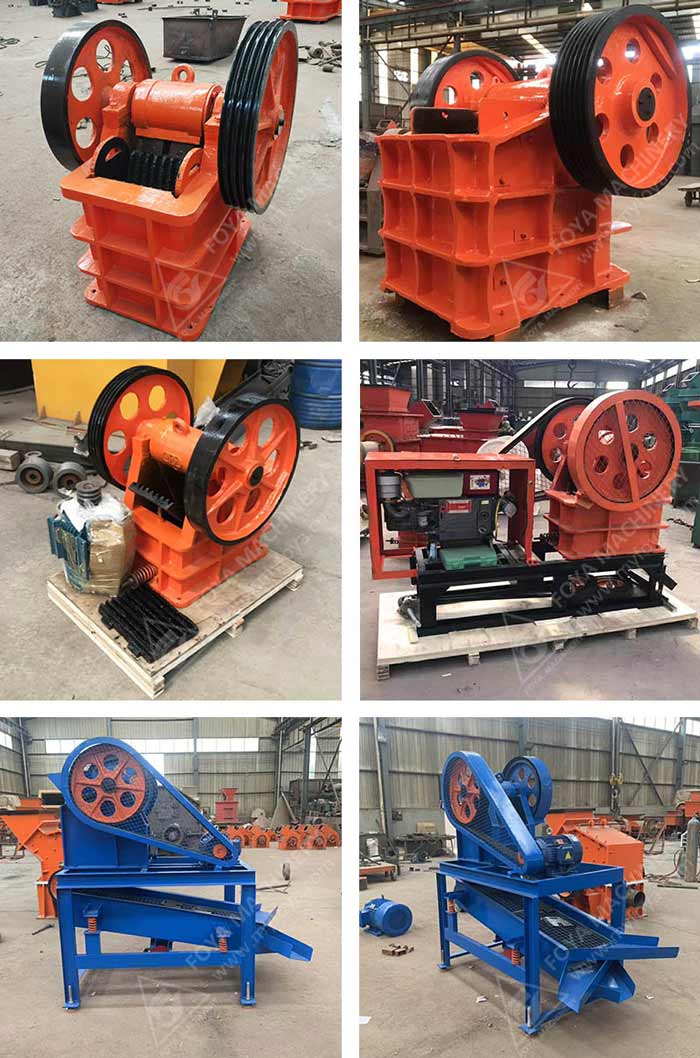

Pictures

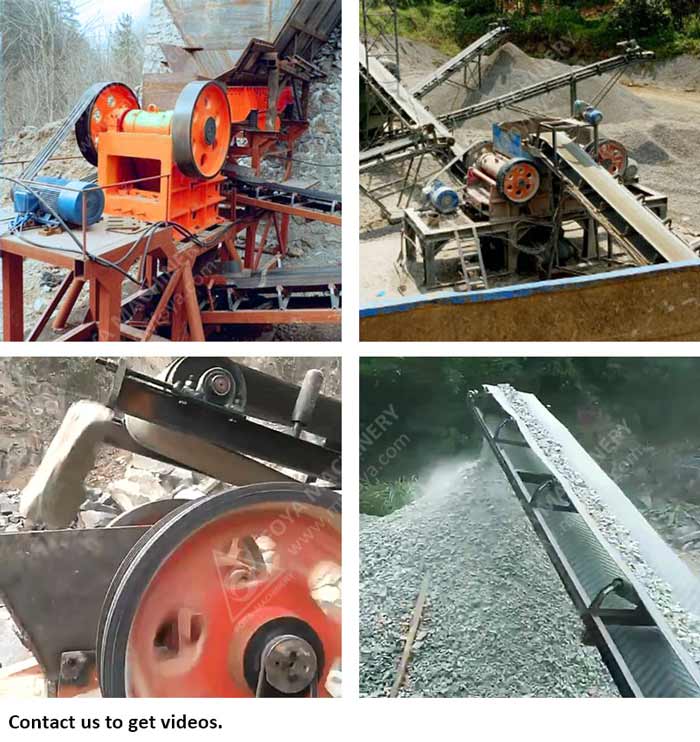

Working Site
