Palm Kernel Oil Press Plant
The production line is suitable for small farmers, small palm orchards, small palm kernel oil plants, economical and fast cost recovery. At present, the production line is mainly exported to Africa, Southeast Asia and other regions.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you

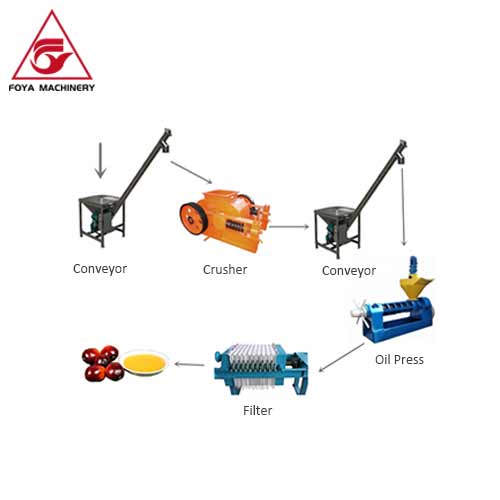

The palm kernel oil production line is mainly used to squeeze palm kernel oil, including crushers, conveyors, presses, oil filters, etc. It has the characteristics of simple configuration, small investment and high income, and is the best choice for small and medium investors. If necessary, can also be equipped with shelling machine, separator and other machinery.
1. High oil output rate (efficiency of oil output is greater than 93%), less slag output, and clear crude oil;
2. The material of the machine is excellent, and the accessories are quenched and tempered, which is wear-resistant and has a long service life;
3. Reasonable design, small investment and high income.
4. Low energy consumption, low noise and simple operation.

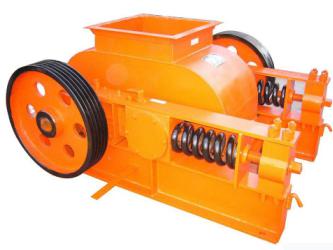

Palm Kernel Crusher
| Dimension | 1540*820*1500mm |  |
| Motor power | 7.5kw*2 | |
| Weight | 1500kg | |
| Capacity | 2t/h (50-60t/24h) |
Oil Press
| Dimension | 2350*1650*2300mm |  | |
| Motor power | 45kw | ||
| Weight | 2500kg | ||
| Capacity | 1st pressing | 20-22 t/24h | |
| 2nd pressing | 10-12 t/24h | ||
| Screw rotate speed | 30-40rpm | ||

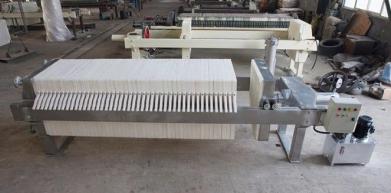

Oil Filter
| Compression way | Jack/ hydraulic |  |
| Filter board | Chamber type | |
| Filter board size | 650*650mm | |
| Pressure | <0.6MPa | |
| Filter area | 15-40m2 | |
| Power | 2.2-4kw |

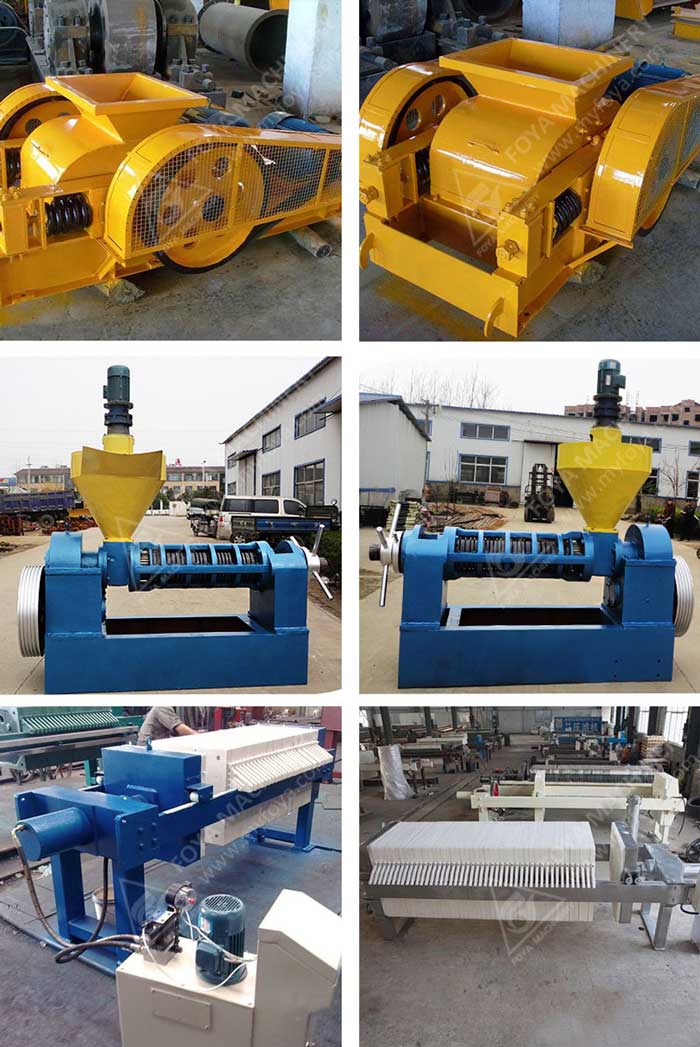

Pictures
