Disc Mower
Disc mowers are mainly used to harvest all kinds of livestock grasses, such as alfalfa, rye grass, oat grass, etc., and it has work efficiency.
Counseling hotline: 0086 - 13027503590
Recommend similar products for you
The disc mower is connected to the tractor's rear suspension traction frame to drive the work with the PTO shaft. The machine has 4-8 high-speed rotating cutter heads. Each cutter head is equipped with two blades, which can operate at a high speed of 1-2 hectares per hour, and the productivity is extremely high.
1. Good working stability, low failure rate, low maintenance costs.
2. The blade beam is low, easy to lift, can cut close to the ground, the stubble is low, and can fit different terrains.
3. The cutting blade can be hit back when it encounters a large obstacle to avoid damage to the blade.
4. Improved heat treatment process, wear resistance is 3-5 times that of ordinary materials.
| Model | DMY-167 | DMY-205 | DMY-245 | DMY-286 | DMY-320 |
| Matched power( hp) | 45-60 | 45-60 | 50-70 | 55-70 | 60-90 |
| Cutting width (m) | 1.67 | 2.05 | 2.45 | 2.86 | 3.2 |
| Disc number | 4 | 5 | 6 | 7 | 8 |
| Speed (km/h) | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 |
| Weight (kg) | 436 | 487 | 590 | 629 | 707 |

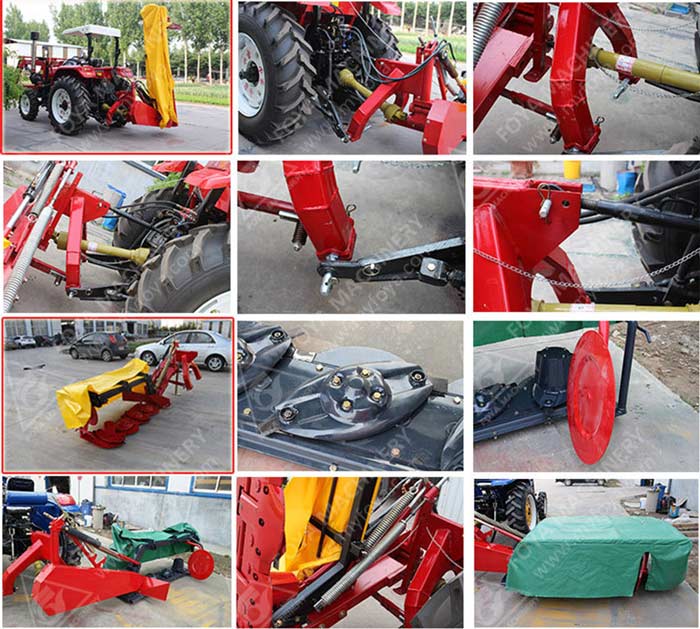

Detailed Pictures

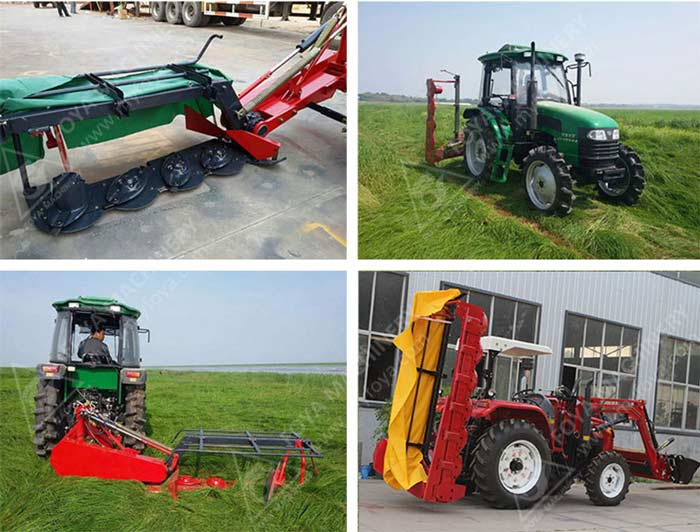

Working Sites
